Why Choose the WAGO 2201-1204 2-Conductor Through Terminal Block?

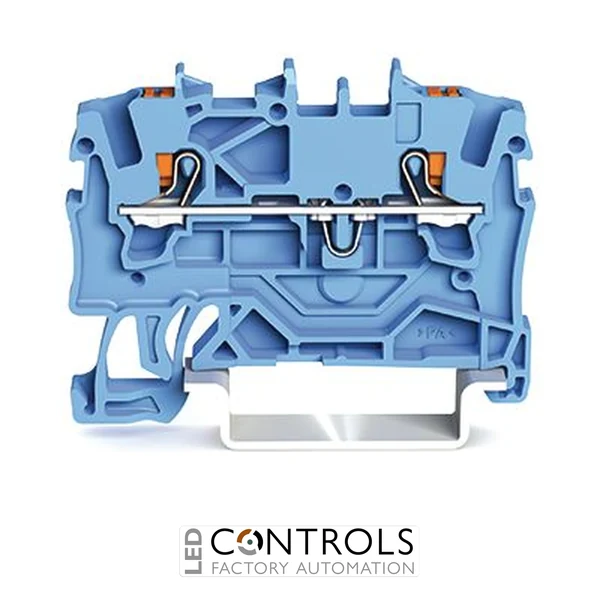

The WAGO 2201-1204 is a blue 2-conductor through terminal block with push-button from the TOPJOB® S 2201 Series. Designed for compact DIN rail wiring, it uses WAGO's Push-in CAGE CLAMP® connection technology to provide fast, reliable conductor termination in industrial control panels, machinery and automation systems.
This terminal block has a nominal cross-section of 1.5 mm² and supports solid and fine-stranded copper conductors from 0.25–2.5 mm². Suitable solid and ferruled conductors can be inserted directly using push-in termination, while the integrated push-buttons provide convenient operation of the spring connection when inserting or removing other supported conductor types.
At only 4.2 mm wide, the 2201-1204 provides a space-efficient feed-through connection while retaining useful features such as an integrated test port and marking facilities. Its blue housing makes it particularly suitable for applications where blue terminal identification is required, and this product is supplied in a pack of 100.
Key Advantages
- Push-in CAGE CLAMP® technology enables fast, dependable conductor termination.
- Integrated push-buttons simplify spring-clamp operation and conductor removal.
- Compact 4.2 mm width supports high-density DIN rail installations.
- Accepts solid and fine-stranded conductors from 0.25–2.5 mm².
- Integrated test port supports convenient commissioning and troubleshooting.
- Blue housing provides clear visual differentiation within terminal assemblies.
Key Features
- WAGO TOPJOB® S 2201 Series terminal block.
- 2-conductor feed-through configuration.
- Push-in CAGE CLAMP® spring-pressure connection technology.
- Push-button actuation.
- 1.5 mm² nominal cross-section.
- Conductor range up to 2.5 mm².
- 800 V IEC rated voltage.
- Front-entry wiring for convenient panel assembly.
- Integrated test port.
- Blue PA66 polyamide housing with UL 94 V-0 flammability classification.
Compact Push-In Wiring with Push-Button Operation
Push-in CAGE CLAMP® technology allows suitable solid and ferruled conductors to be inserted directly into the connection point, helping reduce wiring time during control-panel production. The integrated push-button provides straightforward spring-clamp actuation for conductor installation, removal and rewiring without relying on a conventional screw connection.
With its slim 4.2 mm profile, the WAGO 2201-1204 helps maximise connection density on the DIN rail. The blue housing also provides immediate visual differentiation within the terminal row, supporting clearly structured wiring in control, automation and electrical distribution applications.
Typical Applications
- Industrial electrical control panels.
- Machine building and factory automation.
- PLC and control-system wiring.
- Blue-coded terminal circuits.
- Signal, control and power distribution wiring.
- Switchgear and electrical distribution cabinets.
