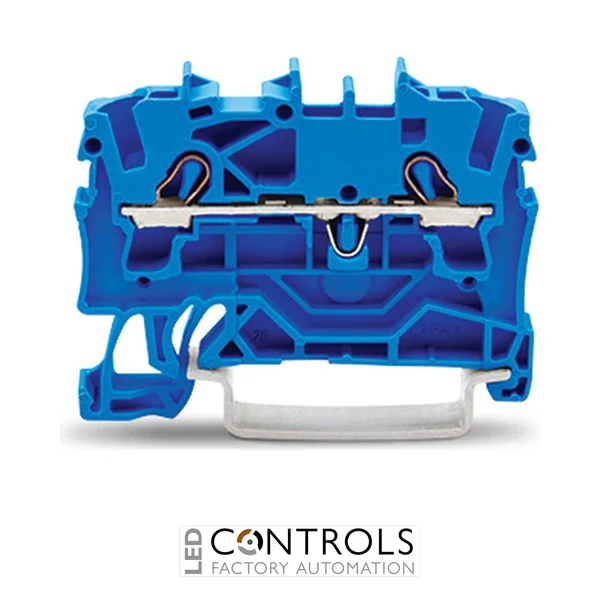

WAGO 2002-1204 TOPJOB S blue 2-conductor through terminal block with 2.5 mm² nominal cross-section and Push-in CAGE CLAMP connection technology for DIN-rail wiring and Ex e II or Ex i applications.
£0.49
The WAGO 2002-1204 is a compact 2-conductor through terminal block from the WAGO TOPJOB® S range, designed for secure DIN-rail conductor connections in industrial control, distribution and automation systems. Its blue housing and suitability for Ex e II and Ex i applications make it particularly useful where clear circuit identification and dependable spring-pressure connection technology are required.
Using WAGO Push-in CAGE CLAMP® connection technology, the terminal block enables suitable solid conductors to be inserted directly without tools while maintaining reliable contact pressure. The spring-clamp design provides resistance to vibration and helps reduce wiring and maintenance time compared with conventional screw terminals.
With a nominal cross-section of 2.5 mm², an IEC rated voltage of 800 V and rated current of 24 A, the 2002-1204 provides a compact connection solution for demanding panel-building applications. It mounts on standard 35 mm DIN rail and provides side and centre marking positions for organised circuit identification.
WAGO Push-in CAGE CLAMP® technology combines spring-pressure connection reliability with quick conductor installation. Suitable solid conductors can be inserted directly into the terminal block, while the integrated spring maintains consistent contact force without requiring screw retightening.
The TOPJOB® S system is designed for compact, organised control-panel wiring. The narrow terminal profile, integrated jumper facilities and flexible marking positions help panel builders create structured terminal assemblies while making commissioning, testing and future maintenance easier.
Tick the specs you need, then view products that match.
| Product Series | WAGO TOPJOB S | |
|---|---|---|
| Terminal Type | Feed-through | |
| Colour | Blue | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2002 Series | |
| Model | 2002-1204 | |
| Product type | 2-conductor through terminal block | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-in | |
| Nominal cross-section | 2.5 mm² | |
| Solid conductor range | 0.25–4 mm² | |
| Fine-stranded conductor range | 0.25–4 mm² | |
| Rated voltage | 800 V | |
| Rated current | 24 A | |
| Maximum current at conductor cross-section | 32 A | |
| Rated impulse withstand voltage | 8 kV | |
| Ex e II rated voltage | 550 V | |
| Ex e II rated current | 22 A | |
| Ex e II rated current with jumper | 20 A | |
| Number of connection points | 2 | |
| Number of potentials | 1 | |
| Number of levels | 1 | |
| Number of jumper slots | 2 | |
| Strip length | 10–12 mm | |
| Mounting type | DIN-35 rail | |
| Compatible DIN rails | 35 × 7.5 mm and 35 × 15 mm | |
| Marking | Side and centre marking | |
| Colour | Blue | |
| Insulation material | Polyamide PA66 | |
| Flammability class | UL 94 V-0 | |
| Width | 5.2 mm | |
| Height | 48.5 mm | |
| Depth from upper edge of DIN rail | 32.9 mm |
The WAGO 2002-1204 is used to connect two electrical conductors at a single potential on a DIN rail in control cabinets, industrial machinery and electrical installations.
The terminal block has a nominal conductor cross-section of 2.5 mm² and accepts selected solid and fine-stranded copper conductors up to 4 mm².
It uses WAGO Push-in CAGE CLAMP® spring connection technology, allowing suitable conductors to be terminated quickly while maintaining reliable spring contact pressure.
Yes. The 2002-1204 is designed for Ex e II and Ex i applications, subject to the applicable installation requirements and certification conditions.
The terminal block is designed for standard 35 × 7.5 mm and 35 × 15 mm DIN rails.
WAGO TOPJOB® S rail-mount terminal blocks are widely used by panel builders, automation engineers and electrical installers for compact, vibration-resistant and maintenance-friendly conductor connections in industrial electrical systems.
