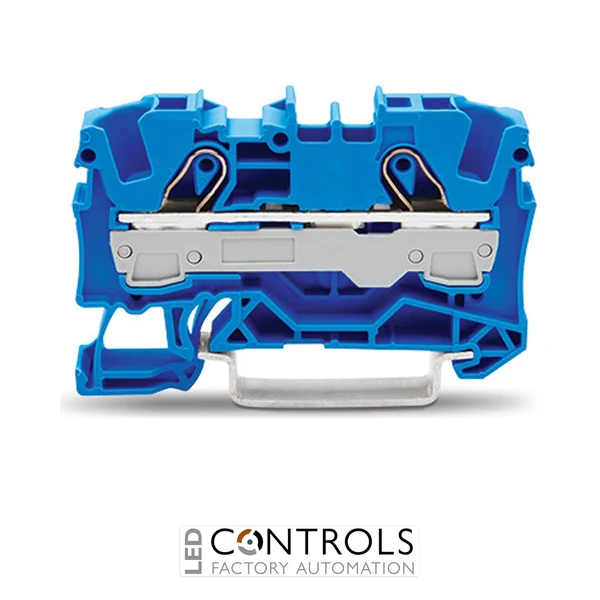

WAGO 2006-1204 is a blue TOPJOB S 2-conductor 6 mm² through terminal block with Push-in CAGE CLAMP connection technology, a 0.5 to 10 mm² conductor range and suitability for specified Ex e II and Ex i applications.
£0.96
The WAGO 2006-1204 is a 2-conductor through terminal block from the TOPJOB® S 2006 Series, designed for reliable conductor termination in industrial control, power distribution and hazardous-area wiring systems. Featuring WAGO's Push-in CAGE CLAMP® connection technology, this blue 6 mm² terminal combines fast installation with dependable spring-pressure connections and is specifically designed for Ex e II and Ex i applications.
With a nominal cross-section of 6 mm², the 2006-1204 accommodates copper conductors across a broad 0.5 to 10 mm² connection range. Suitable conductors can be pushed directly into the clamping point, while the spring-pressure connection maintains consistent contact without the routine retightening associated with conventional screw terminals.
The terminal provides two connection points, one potential and one level in a compact 7.5 mm-wide housing. It has standard IEC electrical ratings of up to 800 V and 57 A, while application-specific ratings and certification conditions apply when it is installed in Ex e II or Ex i circuits. Side and centre marking and compatibility with both 35 × 7.5 mm and 35 × 15 mm DIN rails support organised professional panel installations.
The WAGO 2006-1204 combines a conventional feed-through electrical function with Push-in CAGE CLAMP® spring-pressure technology. Suitable conductors can be inserted directly into the clamping point, while an operating tool can be used to open the spring clamp when required. The resulting connection maintains spring pressure on the conductor and is well suited to demanding industrial terminal assemblies.
Its blue housing provides clear visual differentiation within terminal rows, making the 2006-1204 particularly suitable for appropriately designed intrinsically safe Ex i circuit installations. The product is also specified for Ex e II applications; however, hazardous-area installations must always follow the applicable WAGO certification, application-specific electrical ratings and relevant installation requirements.
Tick the specs you need, then view products that match.
| Product Series | WAGO TOPJOB S | |
|---|---|---|
| Terminal Type | Feed-through | |
| Colour | Blue | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB S / 2006 Series | |
| Model | 2006-1204 | |
| Manufacturer part number | 2006-1204 | |
| Product type | 2-conductor through terminal block | |
| Terminal function | Through / feed-through | |
| Connection technology | Push-in CAGE CLAMP® | |
| Termination style | Push-in spring connection | |
| Wiring direction | Front-entry wiring | |
| Number of connection points | 2 | |
| Number of potentials | 1 | |
| Number of levels | 1 | |
| Nominal cross-section | 6 mm² | |
| Conductor cross-section range | 0.5 to 10 mm² | |
| AWG conductor range | 20–8 AWG | |
| Solid conductor range | 0.5 to 10 mm² | |
| Fine-stranded conductor range | 0.5 to 10 mm² | |
| Fine-stranded conductor with ferrule | 1.5 to 6 mm² | |
| Stripping length | 13 to 15 mm | |
| IEC rated voltage | 800 V | |
| IEC rated current | 57 A | |
| UL rated voltage | 600 V | |
| UL rated current | 50 A | |
| Impulse withstand voltage | 8 kV | |
| Ex suitability | Ex e II and Ex i applications | |
| Width | 7.5 mm | |
| Height | 57.4 mm | |
| Depth from upper edge of DIN rail | 32.9 mm | |
| DIN rail compatibility | 35 × 7.5 mm and 35 × 15 mm | |
| Marking | Side and centre marking | |
| Colour | Blue | |
| Insulation material | Polyamide PA66 | |
| Flammability classification | UL 94 V-0 | |
| Weight | approx. 9.9 g | |
| GTIN / EAN | 4017332999656 |
The WAGO 2006-1204 is a blue 2-conductor through terminal block from the TOPJOB S 2006 Series with a 6 mm² nominal cross-section, Push-in CAGE CLAMP® connections and suitability for specified Ex e II and Ex i applications.
Yes. WAGO specifies the 2006-1204 for Ex i as well as Ex e II applications. Installation must comply with the applicable hazardous-area certification, electrical ratings and system requirements.
The terminal supports copper conductor cross-sections from 0.5 to 10 mm², corresponding to an overall AWG range of approximately 20–8 AWG.
The 2006-1204 has standard IEC ratings of 800 V and 57 A. Hazardous-area applications can have different application-specific ratings, so the relevant Ex certification documentation must be followed.
The terminal uses Push-in CAGE CLAMP®, WAGO's spring-pressure connection technology that enables quick conductor termination while maintaining consistent contact pressure.
The WAGO 2006-1204 is designed for standard 35 × 7.5 mm and 35 × 15 mm DIN rails, providing straightforward integration into industrial terminal block assemblies.
WAGO TOPJOB S terminal blocks combine compact DIN rail construction with proven spring-pressure connection technology, providing panel builders, process engineers and machine manufacturers with dependable conductor termination solutions for industrial and appropriately certified hazardous-area installations.
