WAGO 2102-1291 is a grey 0.8 mm wide snap-on polyamide PA66 end and intermediate plate designed for compatible TOPJOB S 2102 Series rail-mounted terminal block assemblies.
£0.299

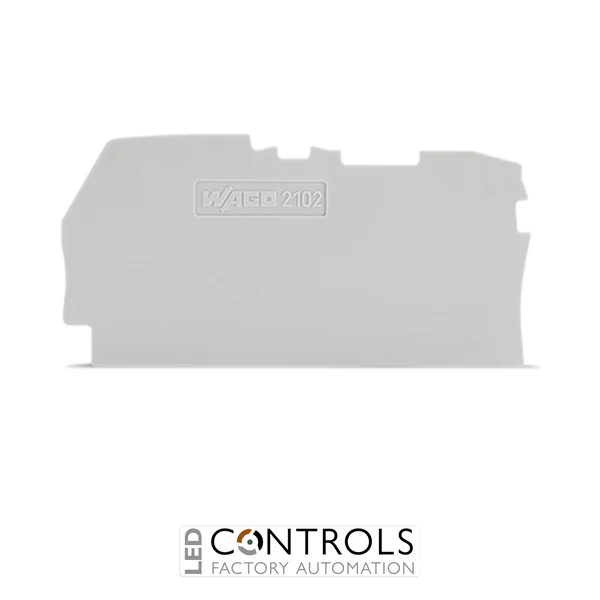

The WAGO 2102-1291 is a grey end and intermediate plate from the WAGO TOPJOB® S 2102 Series, designed for compatible rail-mounted terminal block assemblies. It can be installed at the end of a terminal row or between compatible terminals where an insulating plate is required, helping create neatly organised and professionally finished DIN rail installations.
With a width of only 0.8 mm, the 2102-1291 adds minimal space to the terminal assembly. Its snap-on mounting supports straightforward installation, while the precisely formed profile is designed to integrate with compatible TOPJOB® S 2102 Series terminal blocks.
The plate measures 0.8 × 61.5 × 33 mm and is manufactured from polyamide PA66 insulating material with a UL 94 V-0 flammability classification. With a continuous operating temperature range of -60 to +105 °C, the 2102-1291 is suited to demanding industrial control, machinery and automation installations.
End and intermediate plates are important components in modular terminal installations. An end plate closes the exposed side of a compatible terminal block at the end of a row, while intermediate installation can provide a defined insulating division between compatible terminal positions or groups.
At just 0.8 mm wide, the WAGO 2102-1291 performs this function while adding very little width to the terminal strip. Its snap-on design and coordinated TOPJOB® S profile help panel builders create compact, structured and service-friendly terminal assemblies.
Tick the specs you need, then view products that match.
| Product Series | WAGO TOPJOB S | |
|---|---|---|
| Terminal Type | End plate / End stop (accessory) | |
| Colour | Grey | |
| HS Code | 85389099 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2102 Series | |
| Part number | 2102-1291 | |
| Product type | End and intermediate plate | |
| Accessory type | Terminal block end / intermediate plate | |
| Width / thickness | 0.8 mm | |
| Height | 61.5 mm | |
| Depth | 33 mm | |
| Mounting type | Snap-on | |
| Colour | Grey | |
| Insulation material | Polyamide PA66 | |
| Material group | I | |
| Flammability classification | UL 94 V-0 | |
| Processing temperature | -35 to +85 °C | |
| Continuous operating temperature | -60 to +105 °C | |
| Weight | approx. 1.5 g | |
| For use with | Compatible WAGO TOPJOB® S 2102 Series terminal blocks | |
| GTIN | 4055143745345 | |
| Country of origin | Germany | |
| Packaging unit | 100 | |
| Subpackaging unit | 25 |
The WAGO 2102-1291 is an end and intermediate plate used with compatible TOPJOB® S 2102 Series terminal blocks to close an exposed terminal side or provide an insulating plate within a terminal assembly.
The plate has a nominal width or thickness of 0.8 mm, allowing it to integrate into compact terminal assemblies while adding minimal overall width.
The 2102-1291 measures 0.8 mm wide, 61.5 mm high and 33 mm deep.
The plate is manufactured from polyamide PA66 insulating material and has a UL 94 V-0 flammability classification.
The 2102-1291 is designed for use with compatible WAGO TOPJOB® S 2102 Series rail-mounted terminal blocks.
WAGO TOPJOB® S terminal blocks and accessories provide modular, space-efficient connection solutions for industrial control panels, machinery, automation equipment and electrical distribution systems.
