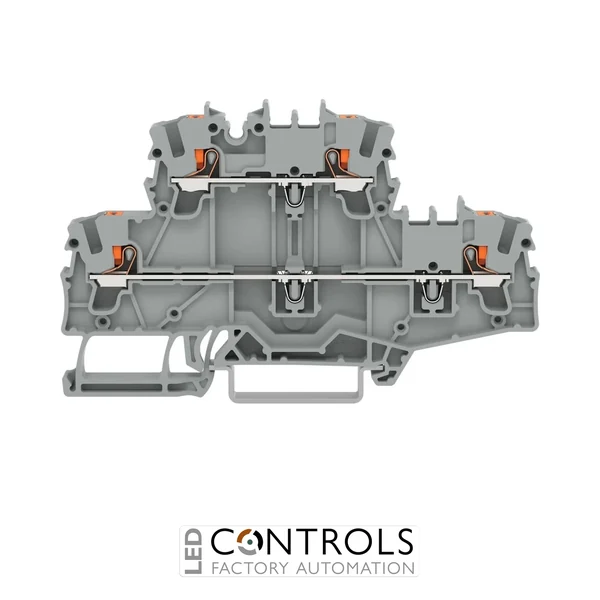

WAGO 2202-2701 is a grey TOPJOB S 2.5 mm² double-deck through/through terminal block with four conductor positions, two independent potentials, push-button operation and Push-in CAGE CLAMP technology.
£1.25
The WAGO 2202-2701 is a compact 4-conductor double-deck through/through terminal block designed to provide two separate through connections within the width of a single DIN-rail terminal. Part of the WAGO TOPJOB® S 2202 Series, this grey L/L terminal combines a 2.5 mm² nominal cross-section with Push-in CAGE CLAMP® technology and push-button actuation for efficient, reliable industrial wiring.
The double-deck design provides four conductor connection points across two independent electrical potentials, allowing two separate circuits to be routed through one compact terminal position. This arrangement can significantly increase wiring density in control cabinets compared with installing two conventional single-level terminals, while the integrated push-buttons provide intuitive operation of each spring-pressure clamping point.
The WAGO 2202-2701 accepts copper conductors from 0.25 to 4 mm² and has an IEC rated voltage of 800 V, rated current of 24 A and rated impulse voltage of 8 kV. At only 5.2 mm wide, it is ideal for space-conscious control panels and is suitable for DIN-35 × 15 and DIN-35 × 7.5 mm mounting rails. This product is supplied in a pack of 50.
Double-deck terminal blocks are particularly useful where control cabinet space is limited. Instead of installing two separate single-level through terminals, the WAGO 2202-2701 places two electrically independent through circuits on two levels. This allows four conductors and two potentials to be accommodated within a terminal just 5.2 mm wide, increasing terminal density without combining the two circuits electrically.
Push-in CAGE CLAMP® technology further simplifies installation by using spring pressure to maintain conductor contact instead of conventional screw clamping. Suitable conductors can be inserted directly, while the orange push-buttons provide clear access for operating the clamping points when connecting flexible conductors or removing existing wiring. The result is a compact and maintainable terminal solution for high-density industrial installations.
Tick the specs you need, then view products that match.
| Voltage | 800 V | |
|---|---|---|
| Current | 24 A | |
| Number of Connection Points | 2 | |
| Product Series | WAGO TOPJOB S | |
| Connection | Push-in | |
| Terminal Type | End plate / End stop (accessory) | |
| Conductor Size | 2.5 mm² | |
| Number of Levels | 2 | |
| Colour | Grey | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2202 | |
| Model | 2202-2701 | |
| Manufacturer part number | 2202-2701 | |
| Product type | Double-deck terminal block | |
| Terminal function | Through / through | |
| Potential configuration | L/L | |
| Number of levels | 2 | |
| Number of conductor positions | 4 | |
| Number of potentials | 2 | |
| Nominal cross-section | 2.5 mm² | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-button | |
| Connectable conductor material | Copper | |
| Conductor cross-section range | 0.25–4 mm² | |
| Conductor range | 22–12 AWG | |
| Strip length | 10–12 mm | |
| Rated voltage (IEC) | 800 V | |
| Rated current (IEC) | 24 A | |
| Rated impulse voltage | 8 kV | |
| Overvoltage category | III | |
| Pollution degree | 3 | |
| Colour | Grey | |
| Actuator colour | Orange | |
| Insulating material | Polyamide 66 (PA66) | |
| Material group | I | |
| Flammability class | UL 94 V0 | |
| Terminal width | 5.2 mm | |
| Height | 51.7 mm | |
| Depth | 92.5 mm | |
| Weight | approx. 12.5 g | |
| Fire load | 0.032 MJ | |
| Mounting type | DIN-35 rail | |
| Compatible DIN rails | 35 × 15 mm and 35 × 7.5 mm | |
| Marker carrier | Without marker carrier | |
| Suitable for Ex applications | Yes, specific Ex e II applications | |
| Processing temperature | -35 to +85 °C | |
| Continuous operating temperature | -60 to +105 °C | |
| Pack quantity | 50 pieces | |
| Packaging type | Box | |
| Country of origin | Germany | |
| GTIN | 4055143844598 | |
| Customs tariff number | 85369010000 | |
| RoHS status | Compliant, no exemption |
The WAGO 2202-2701 is a double-deck through/through terminal block used to route two separate electrical potentials through a compact DIN-rail terminal, providing four conductor positions across two levels.
The WAGO 2202-2701 accommodates four conductor positions across two levels. Each level forms a separate through connection, providing two independent electrical potentials.
The terminal has a nominal cross-section of 2.5 mm² and supports copper conductors from 0.25 to 4 mm², depending on conductor construction and termination method.
The WAGO 2202-2701 has an IEC rated voltage of 800 V, a rated current of 24 A and a rated impulse voltage of 8 kV.
The terminal uses Push-in CAGE CLAMP® spring-pressure connection technology with push-button actuation. Suitable conductors can be inserted directly, while the push-buttons allow convenient opening of the clamping points for conductor installation or removal.
WAGO TOPJOB® S double-deck terminal blocks combine high wiring density, Push-in CAGE CLAMP® spring-pressure technology and installer-friendly push-button operation to provide dependable connections for industrial automation, machinery and electrical distribution systems.
