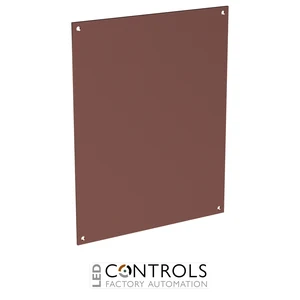

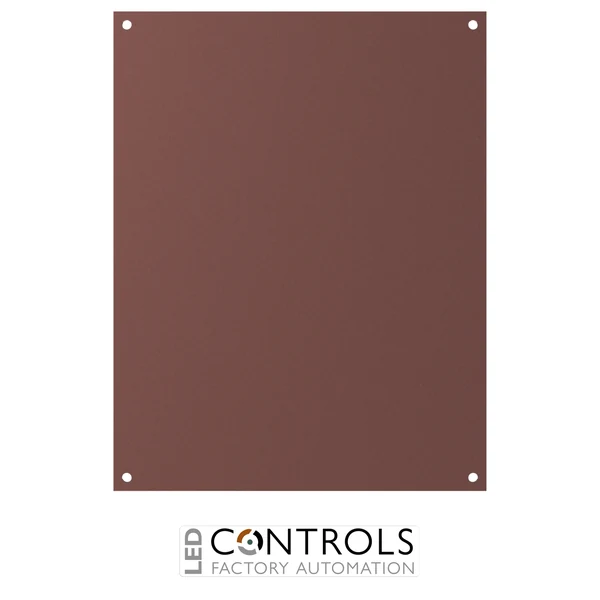

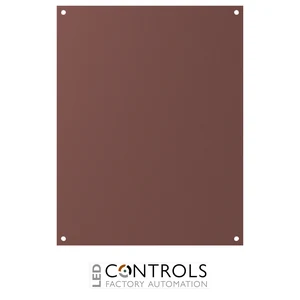

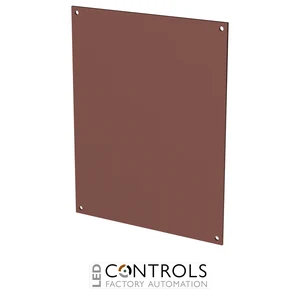

4TBA831054C0100 ABB 831054 Pertinax Mounting Plate 350 x 450 x 5mm for Aria Enclosures

Why Choose the ABB 831054 Pertinax Mounting Plate 350mm x 450mm for Aria Enclosures?

The ABB 831054 Pertinax Mounting Plate (4TBA831054C0100) is an internal electrical enclosure mounting accessory from the ABB Aria Enclosures product group. Identified by the manufacturer as 831054 Pertinax MP 350w x 450h x 5d, this mounting plate provides a rigid, non-metallic mounting surface for suitable electrical equipment within compatible ABB Aria cabinets.

Measuring 350 mm wide, 450 mm high and 5 mm thick, the ABB 831054 offers a defined mounting area for professional electrical panel building and equipment installation. Its Pertinax construction distinguishes it from conventional steel mounting plates, making it relevant to applications where a non-metallic mounting substrate is preferred as part of the enclosure design.

As part of the ABB Aria Enclosures accessory range, the ABB 831054 mounting plate supports organised internal equipment layouts and the installation of appropriately selected electrical components. It is suitable for consideration in control panels, electrical distribution cabinets and other compatible enclosure assemblies where the mounting plate dimensions, material and fixing arrangement meet the project's requirements.

Key Advantages

• Pertinax construction provides a rigid, non-metallic mounting surface.
• 350 mm nominal width offers a defined area for electrical component positioning.
• 450 mm nominal height supports organised internal equipment layouts.
• 5 mm plate thickness provides a substantial mounting substrate for suitable fixings.
• Part of the ABB Aria Enclosures product group.
• Suitable for compatible electrical control and distribution enclosure applications.
• Supports professional panel building and electrical equipment assembly.
• Provides an alternative to metallic mounting plates where the design calls for a non-metallic substrate.
• Helps installers plan component spacing and internal wiring routes.
• Useful for compatible enclosure refurbishment and replacement projects.
• Can support appropriately selected components and mounting accessories, subject to fixing and load requirements.
• ABB order code 4TBA831054C0100 enables accurate product identification and procurement.

Key Features

• Manufacturer: ABB.
• Product group: Aria Enclosures.
• Product reference: 831054.
• ABB order code: 4TBA831054C0100.
• Product type: Pertinax mounting plate.
• Manufacturer designation: Pertinax MP.
• Nominal width: 350 mm.
• Nominal height: 450 mm.
• Nominal thickness: 5 mm.
• Material: Pertinax.
• Material category: Non-metallic laminated material.
• Designed for use as an internal electrical equipment mounting surface.
• Suitable for compatible ABB Aria enclosure arrangements.
• Supports structured positioning of suitable electrical components.
• Intended for professional electrical enclosure assembly.
• Requires verification of mounting arrangements and enclosure compatibility.

Understanding the ABB 831054 Pertinax Mounting Plate

The ABB 831054 is manufactured from Pertinax, a term commonly used for rigid, resin-bonded paper laminate materials. Unlike a conventional steel mounting plate, a Pertinax plate provides a non-metallic mounting substrate. This distinction can be relevant when designing electrical assemblies that require particular material characteristics or a non-metallic base for selected components.

The mounting plate has nominal dimensions of 350 × 450 × 5 mm, providing a defined surface for positioning compatible electrical equipment. Its 5 mm thickness is particularly important when selecting mechanical fixings or planning any permitted drilling operations. Installers should follow ABB's guidance on fixing methods, edge distances, hole preparation and mechanical loading.

Pertinax materials are generally associated with electrical insulating applications, but the ABB 831054 must not be assumed to provide a particular dielectric strength, insulation class, temperature rating or fire classification without reference to its product-specific technical documentation. Where the plate forms part of an electrical safety design, the complete assembly must be assessed against the relevant requirements rather than relying on material type alone.

The ABB 831054 Pertinax mounting plate is intended for compatible Aria enclosure arrangements. Before installation, the enclosure model, mounting points, internal clearances and intended equipment layout should be verified. The plate is an internal accessory and does not independently determine the finished enclosure's ingress protection, electrical safety classification or permissible equipment load.

Typical Applications

• Compatible ABB Aria electrical enclosures.
• Electrical control panel construction.
• Low-voltage distribution cabinet assembly.
• Industrial automation and control equipment installations.
• Internal mounting of suitable electrical components.
• Panel layouts requiring a non-metallic mounting substrate.
• Building services control cabinets.
• Professional electrical enclosure refurbishment.
• Replacement of matching ABB Pertinax mounting plates.
• Projects specifying a 350 × 450 × 5 mm Pertinax mounting surface.
