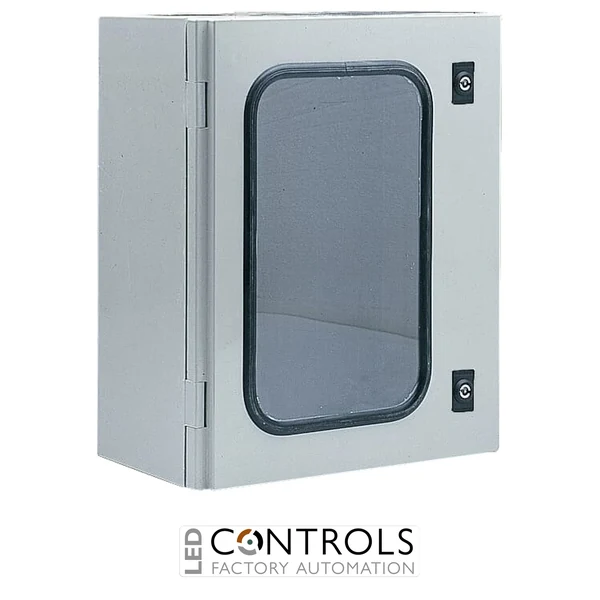

Why Choose the ABB 831812 Aria Glass-Door Polyester Enclosure?
The ABB 831812 is a robust and versatile glass-door electrical enclosure designed to protect electrical distribution, control and automation equipment in industrial and commercial installations. As part of the ABB Aria universal polyester enclosure series, it combines durable non-metallic construction with a transparent door arrangement, providing convenient visual inspection of installed components without opening the cabinet.
Manufactured from glass-fibre reinforced polyester, the ABB Aria enclosure range offers excellent resistance to corrosion, electrical insulation properties and reliable mechanical protection. The enclosure features a two-point door closure and a modular internal arrangement that supports compatible mounting plates, equipment frames and electrical installation accessories.
With enclosure dimensions of 415 mm wide × 515 mm high × 230 mm deep, the ABB 831812 provides a practical housing for electrical equipment requiring protection from dust, accidental contact and environmental exposure. Its IP54 protection rating, IK07 impact resistance and grey polyester construction make it suitable for demanding electrical installations where durability, accessibility and equipment visibility are important.
Key Advantages
- Glass-door enclosure allows visual inspection of installed electrical equipment without opening the cabinet.
- 415 × 515 × 230 mm enclosure dimensions provide useful internal installation space.
- Glass-fibre reinforced polyester construction offers corrosion resistance and electrical insulation.
- IP54 protection rating helps protect installed equipment against dust and splashing water.
- IK07 mechanical impact resistance supports dependable operation in industrial environments.
- Two-point door closure provides secure and consistent enclosure closing.
- Self-extinguishing, halogen-free polyester construction supports safer electrical installation design.
- Compatible with ABB Aria mounting plates, mounting frames and enclosure accessories.
- Suitable for electrical distribution, industrial control and automation installations.
Key Features
- ABB Aria universal polyester enclosure series.
- 831812 enclosure designation.
- ABB Aria 54 enclosure size.
- Glass-door / transparent-door configuration.
- 415 mm width × 515 mm height × 230 mm depth.
- Glass-fibre reinforced polyester housing.
- IP54 ingress protection.
- IK07 impact resistance.
- Two-point door locking arrangement.
- Grey enclosure finish.
- Self-extinguishing and halogen-free construction.
- Polyester enclosure material suitable for continuous temperatures up to 70 °C.
- Provision for compatible internal mounting plates and mounting frames.
- Suitable for wall-mounted electrical equipment installations.
Technical Specifications
- Manufacturer: ABB
- Series: Aria Enclosures
- Enclosure family: Aria 54
- Model: 831812
- Series type designation: AR054T23
- ABB order code: 4TBA831812C0100
- Product group: Aria Enclosures
- Product designation: 831812 Encl 415w x 515h x 230d G/D
- Product type: General-purpose electrical enclosure
- Door type: Glass door / transparent door
- Enclosure width: 415 mm
- Enclosure height: 515 mm
- Enclosure depth: 230 mm
- Dimensions (W × H × D): 415 × 515 × 230 mm
- Housing material: Glass-fibre reinforced polyester
- Colour: Grey
- Ingress protection: IP54
- Mechanical impact resistance: IK07
- Door closure: Two-point closure
- Material characteristics: Self-extinguishing and halogen-free
- Maximum continuous material temperature: 70 °C
- Mounting arrangement: Wall / surface mounting
- Internal equipment mounting: Compatible Aria mounting plates and frames
- Application: Electrical distribution, control and automation equipment protection
- Country of origin: Belgium
Reliable Electrical Equipment Protection for Industrial Installations
Electrical enclosures play an essential role in protecting distribution and control equipment from environmental contamination, accidental contact and mechanical damage. The ABB 831812 Aria enclosure uses glass-fibre reinforced polyester construction to provide a durable, electrically insulating housing that resists corrosion and supports long-term installation in demanding environments.
The enclosure's IP54 protection rating provides protection against harmful dust ingress and splashing water from different directions, while its IK07 rating indicates resistance to mechanical impacts at the specified test energy. The transparent door enables operators and maintenance personnel to inspect indicators, meters and other visible equipment without routinely opening the enclosure.
As part of the ABB Aria modular enclosure system, the 831812 supports flexible internal equipment arrangements using compatible mounting plates, frames and accessories. Its two-point closure helps maintain consistent door engagement, while the polyester housing provides a lightweight, corrosion-resistant alternative to conventional metal electrical cabinets. Correct installation, cable entry sealing and accessory selection are important for maintaining the intended enclosure protection rating.
Typical Applications
- Industrial electrical control and automation panels.
- Low-voltage electrical distribution equipment.
- Electrical cabinets containing meters and monitoring instruments.
- Building management and electrical control systems.
- Commercial and industrial electrical installations.
- Motor control and machine automation equipment enclosures.
- Instrumentation and process monitoring systems.
- Electrical installations requiring visible equipment status indicators.
- Corrosion-resistant electrical equipment housing applications.
