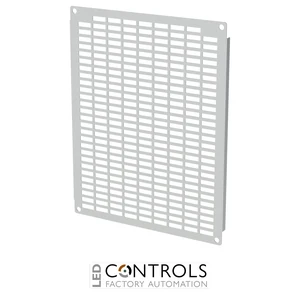

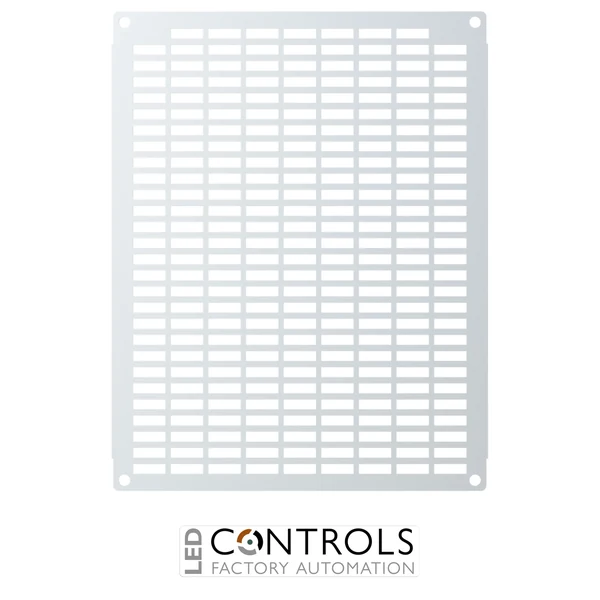

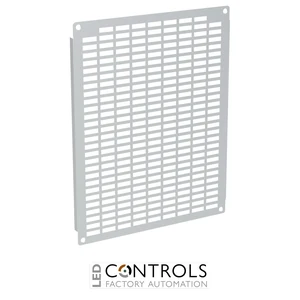

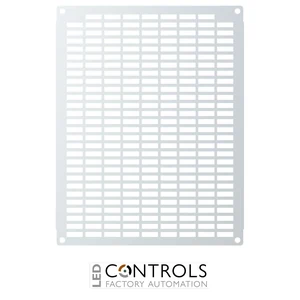

4TBA831334C0100 ABB 831334 ARIA Perforated Mounting Plate 350 x 450 x 1.5mm
ABB 831334 perforated mounting plate for compatible ARIA electrical enclosures, measuring 350 mm wide x 450 mm high x 1.5 mm thick, providing a pre-perforated internal mounting surface for suitable electrical distribution, control and automation components.
Why Choose the ABB 831334 ARIA Perforated Mounting Plate?
The ABB 831334 Perforated Mounting Plate is a practical internal mounting accessory for compatible electrical enclosures in the ABB Aria Enclosures range. Measuring 350 mm wide × 450 mm high × 1.5 mm thick, it provides a dedicated mounting surface for organising suitable electrical distribution, control and automation components inside an enclosure.
Identified by ABB order code 4TBA831334C0100, the 831334 features a perforated mounting surface that supports flexible component positioning using compatible fixing hardware. The pre-existing perforations can help electrical panel builders plan equipment layouts and simplify installation compared with a completely blank mounting plate.
With its 350 × 450 mm nominal mounting area, the ABB 831334 offers a useful format for electrical assemblies requiring space for multiple components, associated mounting hardware and wiring arrangements. It is an internal enclosure accessory rather than a complete electrical cabinet, making it suitable for new panel-building projects, maintenance and compatible replacement applications.
Key Advantages
Purpose-designed perforated mounting plate for compatible ABB ARIA electrical enclosures.
350 × 450 mm nominal dimensions provide a practical surface for arranging electrical components.
1.5 mm nominal thickness provides a defined sheet profile for mounting applications.
Perforated construction supports flexible equipment positioning with suitable fixings.
Helps organise electrical equipment within compatible enclosure installations.
Supports efficient planning of electrical control panel layouts.
Can reduce the need to create individual mounting holes where existing perforations suit the application.
Suitable for electrical panel building, maintenance and refurbishment.
Part of the coordinated ABB Aria Enclosures accessory range.
ABB order code 4TBA831334C0100 enables accurate identification and procurement.
Key Features
ABB Aria Enclosures accessory.
Model 831334.
Perforated mounting plate (MP) configuration.
350 mm nominal width.
450 mm nominal height.
1.5 mm nominal thickness.
Pre-perforated mounting surface for compatible fastening arrangements.
Designed for internal electrical enclosure installations.
Supports the mounting of appropriately sized electrical components.
Suitable for organised electrical panel assembly.
Can be used in compatible enclosure maintenance and refurbishment projects.
Designed for selection alongside suitable ABB ARIA enclosure accessories.
Manufacturer order code 4TBA831334C0100.
Flexible Internal Equipment Mounting for ABB ARIA Enclosures
The ABB 831334 perforated mounting plate provides a defined internal mounting surface for suitable electrical equipment. Mounting plates are important components in electrical cabinet assembly because they allow devices to be positioned in an organised arrangement while supporting the installation of compatible mounting hardware.
The perforated design offers flexibility when arranging electrical components. Existing openings may accommodate suitable fasteners and mounting accessories, depending on the equipment being installed. The precise perforation pattern, hole dimensions and spacing should be checked against ABB's technical drawing before selecting fixing hardware.
At 350 mm wide and 450 mm high, the plate offers a larger nominal mounting format than smaller ARIA mounting plate variants. Its 1.5 mm thickness should be considered when selecting screws, nuts and other fixings. The permissible equipment load depends on the plate's verified material properties, mounting points and the installation method.
As part of the ABB Aria Enclosures accessory range, the 831334 is intended for use with suitably matched cabinets. It does not independently provide environmental protection or electrical isolation. The completed assembly must incorporate appropriate equipment clearances, protective measures, fixings and enclosure components.
Before installation, confirm the mounting plate's compatibility with the exact ABB enclosure model and verify any required brackets or additional hardware. The manufacturer's current documentation for 4TBA831334C0100 should be used to establish the applicable material specification, finish, perforation geometry and load limitations.
Typical Applications
ABB ARIA electrical enclosure assembly.
Industrial electrical control panels.
Commercial electrical distribution cabinets.
Internal mounting of compatible control and switching equipment.
Automation and monitoring equipment installations.
Professional electrical panel-building projects.
Electrical component layout and organisation.
Mounting suitable DIN rail assemblies using compatible fixings.
Electrical cabinet maintenance and refurbishment.
Replacement of compatible perforated mounting plates.
Projects requiring a 350 × 450 mm mounting surface.
Mounting and organising compatible electrical equipment
Compatibility requirement
Verify enclosure dimensions, fixing positions and mounting arrangements before installation
Frequently Asked Questions
What is the ABB 831334 used for?
The ABB 831334 is a perforated mounting plate designed to support the installation and arrangement of compatible electrical components inside suitable ABB ARIA electrical enclosures.
What are the dimensions of the ABB 831334 mounting plate?
The ABB 831334 measures 350 mm wide × 450 mm high × 1.5 mm thick, according to its supplied product designation.
What does MP mean in the ABB 831334 product description?
MP stands for mounting plate. It identifies an internal enclosure accessory used to support and organise compatible electrical equipment.
What is the benefit of a perforated mounting plate?
A perforated mounting plate provides existing openings that may be used with suitable fixing hardware. This can support flexible equipment positioning and reduce the need for additional drilling where the perforation pattern matches the installation requirements.
Which ABB enclosures are compatible with the 831334?
The ABB 831334 belongs to the ABB Aria Enclosures accessory range. Compatibility with a particular enclosure model should be confirmed using ABB's mounting plate selection information and technical drawings before installation.
Can DIN rails be mounted onto the ABB 831334?
Compatible DIN rails may be mounted using suitable fixings where the plate's perforation pattern and mounting arrangements permit. Confirm the rail dimensions, fastener compatibility and equipment load before installation.
Is the ABB 831334 a complete electrical enclosure?
No. The ABB 831334 is an internal perforated mounting plate, not a complete electrical enclosure. It is intended to be installed inside a compatible cabinet.
What is the thickness of the ABB 831334 mounting plate?
The ABB 831334 has a nominal thickness of 1.5 mm. Suitable fixing hardware should be selected for the plate thickness and the equipment being mounted.
Does the ABB 831334 have an IP rating?
The mounting plate does not establish an independent enclosure IP rating. Ingress protection is determined by the complete electrical enclosure assembly, including its door, seals and cable-entry arrangements.
What is the ABB order code for the 831334 perforated mounting plate?
The manufacturer's order code is 4TBA831334C0100, corresponding to the ABB 831334 perforated mounting plate measuring 350 × 450 × 1.5 mm.
Trusted ABB Electrical Enclosure Solutions
ABB Aria Enclosures accessories provide practical mounting solutions for professional electrical distribution and control cabinets. The ABB 831334 Perforated Mounting Plate offers a 350 × 450 mm perforated mounting surface with a nominal thickness of 1.5 mm, helping electrical contractors, panel builders and maintenance teams organise compatible electrical components inside suitable ABB ARIA enclosures.
Product group
Aria Enclosures
Series
ARIA
ABB order code
4TBA831334C0100
Product designation
831334 Perforated MP 350w x 450h x 1.5d
Product type
Perforated mounting plate
Accessory classification
Electrical enclosure mounting accessory
Mounting surface
Perforated
Nominal width
350 mm
Nominal height
450 mm
Nominal thickness
1.5 mm
Nominal dimensions (W × H × thickness)
350 × 450 × 1.5 mm
Installation position
Inside a compatible electrical enclosure
Application
Mounting and organising compatible electrical equipment
Compatibility requirement
Verify enclosure dimensions, fixing positions and mounting arrangements before installation
