Why Choose the ABB ZXM1105 630A 30x10mm Busbar 2PW?

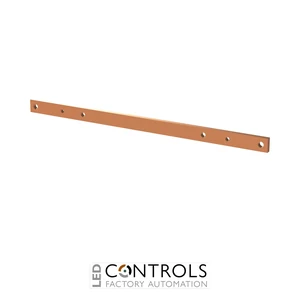

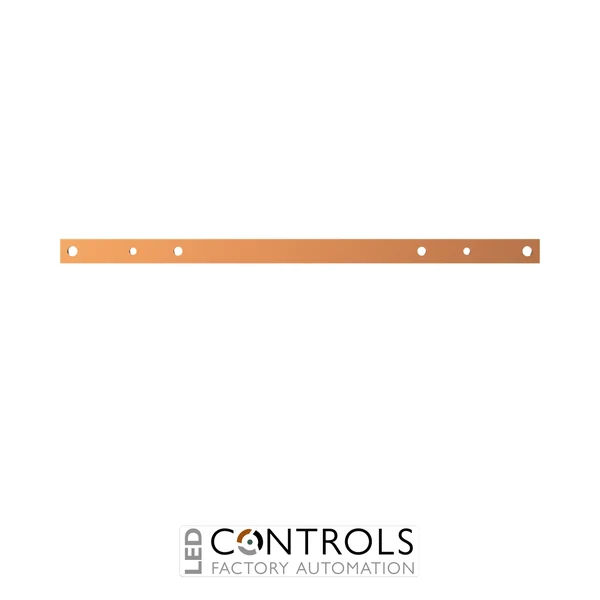

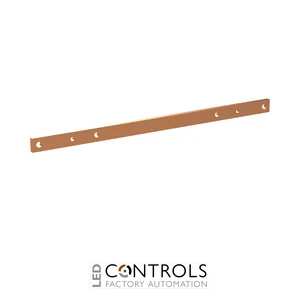

The ABB ZXM1105, order code 2CPX041577R9999, is a high-capacity 30 × 10 mm copper busbar designed for current distribution within compatible ABB low-voltage distribution cabinets. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a robust conductor solution for professional switchboard and sub-distribution assemblies.
The ZXM1105 is supplied mounted and installed in the cabinet and is configured for a 2PW field width. It forms part of ABB’s A2 copper rail arrangement for cabinet row mounting to the right and left, supporting continuous busbar configurations across compatible modular distribution sections.
With a substantial copper cross-section of 30 × 10 mm, a maximum rated current of 630 A and an overall rail length of 600 mm, the ZXM1105 combines high current-carrying capability with a rigid flat-busbar format. Its factory-mounted configuration supports efficient integration into professional ABB CombiLine distribution cabinets.
Key Advantages
- High-capacity 30 × 10 mm copper busbar for low-voltage distribution systems.
- 630 A maximum rated current for demanding current-distribution applications.
- 2PW field-width configuration for compatible ABB cabinet assemblies.
- 600 mm overall rail length for two-field-wide cabinet arrangements.
- Supplied mounted and installed in the cabinet for straightforward system integration.
- A2 copper rail arrangement supports compatible cabinet row mounting to the right and left.
Key Features
- ABB ZXM1105 copper busbar.
- ABB order code 2CPX041577R9999.
- 30 × 10 mm copper conductor dimensions.
- 630 A maximum rated current.
- 2PW field width.
- 600 mm overall rail length.
- Rigid, flat and non-flexible busbar construction.
- Factory-mounted configuration for compatible ABB CombiLine cabinets.
Reliable High-Current Distribution for ABB Cabinets
Copper busbars provide a low-resistance and mechanically robust method of distributing electrical current throughout low-voltage switchboards and distribution cabinets. The ABB ZXM1105 uses a substantial 30 × 10 mm copper cross-section to provide current capacity up to 630 A while integrating efficiently into compatible modular ABB CombiLine assemblies.
The A2 copper rail arrangement supports cabinet row mounting to the right and left and enables compatible module widths to be combined with continuous busbars. The ZXM1105 therefore provides a system-matched solution for professional distribution assemblies where reliable high-current capacity, consistent conductor dimensions and efficient ABB cabinet integration are required.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB CombiLine distribution assemblies.
- Sub-distribution boards and switchboards.
- Cabinet row-mounting systems.
- Industrial electrical distribution cabinets.
- 630 A copper busbar distribution arrangements.
