ABB MN262 CombiLine N+PE and terminal expansion, order code 2CPX041288R9999, is a 2 PW module with 48 space units, a horizontal 2-pole busbar system rated up to 630 A, 438 mm usable terminal width and adjustable 90–145 mm depth for compatible ABB sub-distribution systems.
Why Choose the ABB MN262 N+PE / Terminal Expansion?

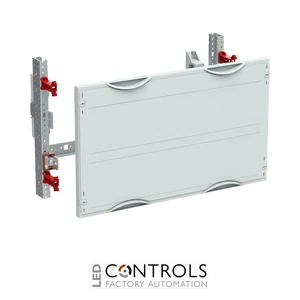

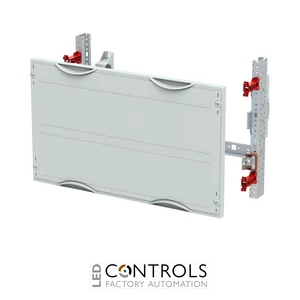

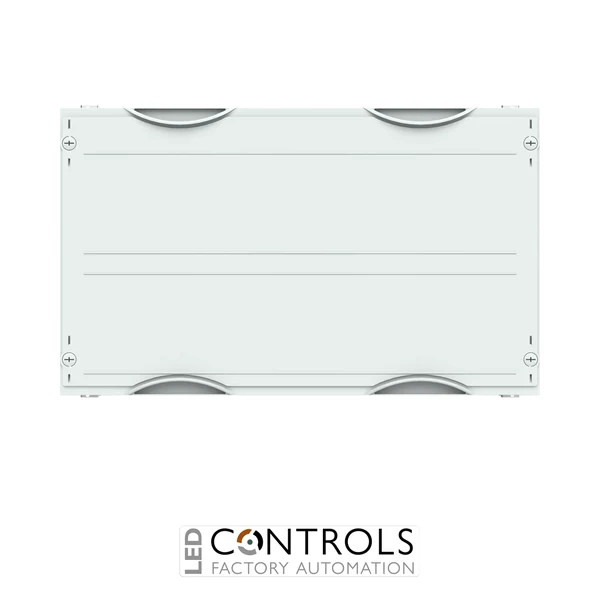

The ABB MN262 is a factory-assembled CombiLine N+PE busbar and terminal expansion module designed for compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX041288R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a 2 PW / 500 mm field width.
The MN262 has a 2 RE / 300 mm module height and provides 48 space units. It combines a horizontal N+PE busbar system with an additional DIN rail for terminal blocks, providing structured neutral, protective-earth and terminal connection capacity within professional distribution assemblies.
The module supports a 2-pole horizontal busbar system with a maximum of two copper busbars, uses a ZX149 busbar holder and is rated up to 630 A. The terminal installation area provides 438 mm usable width, while its DIN rail is continuously adjustable in depth to provide a usable range of 90–145 mm.
Key Advantages
Combines N+PE busbar distribution and terminal installation in one module.
2 PW / 500 mm field width provides substantial connection capacity.
Maximum rated current of 630 A.
Supports up to 2 copper busbars in a horizontal arrangement.
Includes an additional DIN rail for terminal blocks.
Closed RAL 7035 plastic covers with 90-degree press-and-turn closures.
Suitable from a cabinet depth of 275 mm.
Copper busbars and WR mounting frame ordered separately.
Integrated N+PE Busbar and Terminal Distribution
The ABB MN262 combines neutral and protective-earth busbar accommodation with dedicated terminal installation space in a single CombiLine module. Its horizontal 2-pole arrangement accommodates up to two copper busbars and supports a maximum rated current of 630 A, providing a structured connection area within compatible sub-distribution cabinets.
An additional DIN rail provides dedicated terminal-block mounting capacity across a usable width of 438 mm. The rail can be continuously adjusted in depth from 90–145 mm, allowing the terminal installation to be adapted to different equipment and wiring requirements while maintaining an organised distribution-board layout.
Typical Applications
Electrical sub-distribution boards.
ABB CombiLine distribution systems.
Neutral and protective-earth busbar distribution.
Terminal-block connection sections.
Commercial and industrial electrical panels.
Distribution-board extensions and structured connection areas.
Technical Specifications
Tick the specs you need, then view products that match.
Current
630 A
Product Series
S&J CombiLine N
Device Type
Busbar / Terminal
Series
CombiLine
ABB order code
2CPX041288R9999
Product group
DESUJ Sub Distribution
Product type
N+PE / terminal expansion module
Field width
2 PW / 500 mm
Module height
2 RE / 300 mm
Space units
48
Busbar system
2-pole
Busbar orientation
Horizontal
Maximum number of copper busbars
2
Busbar holder
ZX149
Maximum rated current
630 A
Additional DIN rails
1
Usable terminal-block width
438 mm
Usable depth
90–145 mm
Depth adjustment
Stepless via depth-mounting brackets
Minimum cabinet depth
275 mm
Cover
Closed plastic cover, RAL 7035
Cover closure
90-degree press-and-turn
Mounting frame
WR, ordered separately
Busbars
Ordered separately
Frequently Asked Questions
What is the ABB MN262 used for?
The ABB MN262 is a CombiLine N+PE busbar and terminal expansion module designed to provide neutral, protective-earth and terminal connection capacity within compatible ABB sub-distribution cabinets.
What size is the ABB MN262?
The MN262 has a 2 PW / 500 mm field width, a 2 RE / 300 mm module height and provides 48 space units.
What is the maximum rated current of the MN262?
The ABB MN262 has a maximum rated current of 630 A.
What terminal installation capacity does the MN262 provide?
The MN262 includes one additional DIN rail for terminal blocks, providing 438 mm usable width and a continuously adjustable usable depth of 90–145 mm.
What is the ABB order code for the MN262?
The ABB order code for the MN262 is 2CPX041288R9999.
Trusted ABB CombiLine Distribution Components
ABB CombiLine N+PE modules provide structured, system-compatible solutions for neutral, protective-earth and terminal connections within professional electrical sub-distribution assemblies.
