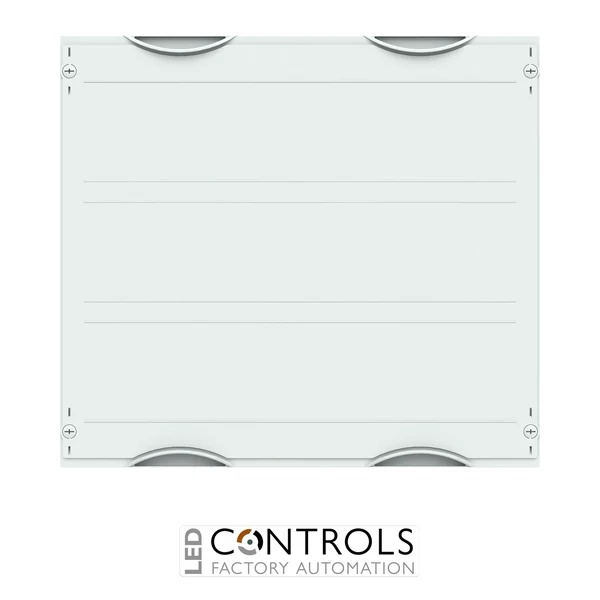

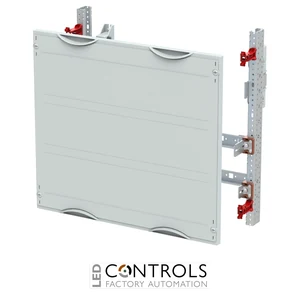

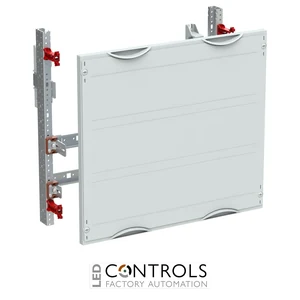

2CPX041291R9999 ABB MN263 N+PE / Terminal Expansion 2PW 630 A
ABB MN263 2CPX041291R9999 is a 2-panel-width CombiLine N N/PE busbar and terminal expansion module rated up to 630 A with a 2-pole horizontal busbar system and two additional DIN rails.
Why Choose the ABB MN263 N+PE / Terminal Expansion 2PW?
The ABB MN263, order code 2CPX041291R9999, is a N/PE busbar and terminal expansion module designed for ABB CombiLine N sub-distribution systems. Supplied mounted and installed for cabinet integration, it combines provision for neutral and protective earth busbars with additional DIN rails for terminal blocks, providing an organised solution for power distribution and termination within low-voltage electrical assemblies.
Designed for professional electrical distribution applications, the MN263 supports a 2-pole horizontal busbar system with a maximum rated current of 630 A. It incorporates the ABB ZX149 busbar bracket and accommodates a maximum of two copper busbars, which are ordered separately. Two additional DIN rails provide dedicated mounting space for terminal blocks, helping create a structured and accessible cabinet layout.
The MN263 occupies 2 panel widths (PW) and 3 grid units (GU), corresponding to nominal dimensions of 450 mm high × 500 mm wide and 72 space units (PLE). The terminal area provides a usable width of 438 mm, while the DIN rail can be continuously adjusted in depth to provide a usable depth range of 90–145 mm. The module is suitable for cabinets from 275 mm deep.
Key Advantages
Purpose-designed N/PE busbar and terminal expansion module for ABB CombiLine N systems.
630 A maximum rated current for demanding sub-distribution applications.
Designed for a 2-pole horizontal busbar system.
Accommodates a maximum of two copper busbars.
Includes two additional DIN rails for terminal blocks.
Generous 438 mm usable terminal block width.
Continuously adjustable DIN rail depth provides a 90–145 mm usable depth range.
Closed plastic cover provides protection against accidental contact.
Compact 2-panel-width format for structured cabinet integration.
Key Features
ABB MN263 N/PE busbar module.
ABB order code 2CPX041291R9999.
Part of the ABB CombiLine N interior expansion system.
630 A maximum rated current.
2-pole horizontal busbar system.
Supports a maximum of two copper busbars.
Fitted with ABB ZX149 busbar bracket.
Includes two additional DIN rails for terminal blocks.
438 mm usable width for terminal blocks.
90–145 mm usable depth with continuously adjustable DIN rail positioning.
2 panel widths (PW) and 3 grid units (GU).
72 space units (PLE).
Closed plastic cover in RAL 7035 light grey.
90-degree push-turn cover fastener.
Suitable for cabinets from 275 mm depth.
Reliable N/PE Distribution and Terminal Expansion
N/PE busbar modules provide dedicated infrastructure for neutral and protective earth distribution within low-voltage electrical assemblies. The ABB MN263 combines a 2-pole horizontal busbar arrangement with dedicated DIN rail space for terminal blocks, allowing distribution and termination functions to be organised within a single modular cabinet section.
The MN263 is designed around ABB's modular CombiLine N system and provides flexibility when configuring larger distribution assemblies. Its two additional DIN rails are continuously adjustable in depth using the mounting arrangement, while the 438 mm usable terminal width provides substantial space for terminal equipment. Continuous busbars can also be used across different module widths within compatible cabinet configurations.
Typical Applications
Low-voltage electrical distribution boards.
Commercial and industrial sub-distribution systems.
ABB CombiLine N cabinet assemblies.
Neutral and protective earth busbar distribution.
Terminal block mounting and cable termination.
Electrical switchgear and distribution cabinets requiring currents up to 630 A.
Technical Specifications
Tick the specs you need, then view products that match.
Current
630 A
Product Series
S&J CombiLine N
Device Type
Busbar / Terminal
Series
CombiLine N
Order code
2CPX041291R9999
Product group
DESUJ Sub Distribution
Product type
N/PE busbar and terminal expansion module
Busbar system
N/PE, 2-pole
Busbar orientation
Horizontal
Rated current
max. 630 A
Maximum number of copper busbars
2
Busbar bracket
ZX149
Additional DIN rails
2
Usable terminal block width
438 mm
Usable depth
90–145 mm
Nominal width
2 PW
Width
500 mm
Nominal height
3 GU
Height
450 mm
Space units
72 PLE
Minimum cabinet depth
275 mm
Cover material
Plastic
Cover design
Closed
Cover fastener
90-degree push-turn fastener
Colour
Light grey, RAL 7035
Installation
Mounted and installed in cabinet
Mounting frame
WR mounting frame ordered separately
Fire protection housing suitability
Not suitable
Frequently Asked Questions
What is the ABB MN263 used for?
The ABB MN263 is an N/PE busbar and terminal expansion module for compatible ABB CombiLine N sub-distribution assemblies, providing a 2-pole horizontal busbar arrangement together with additional DIN rails for terminal blocks.
What is the maximum rated current of the ABB MN263?
The MN263 supports a maximum rated current of 630 A.
How many busbars can the ABB MN263 accommodate?
The MN263 is designed for a 2-pole busbar system and accommodates a maximum of two copper busbars using an ABB ZX149 busbar bracket. The copper busbars must be ordered separately.
How much terminal mounting space does the MN263 provide?
The MN263 includes two additional DIN rails for terminal blocks and provides a usable terminal block width of 438 mm, with an adjustable usable depth of 90–145 mm.
What size is the ABB MN263?
The MN263 occupies 2 panel widths and 3 grid units, corresponding to nominal dimensions of 450 mm high × 500 mm wide and 72 space units.
Designed for ABB Distribution Systems
ABB CombiLine N interior modules provide a modular approach to professional low-voltage distribution assemblies, with the MN263 combining high-current N/PE busbar distribution and flexible terminal mounting space in a compact 2-panel-width format.
