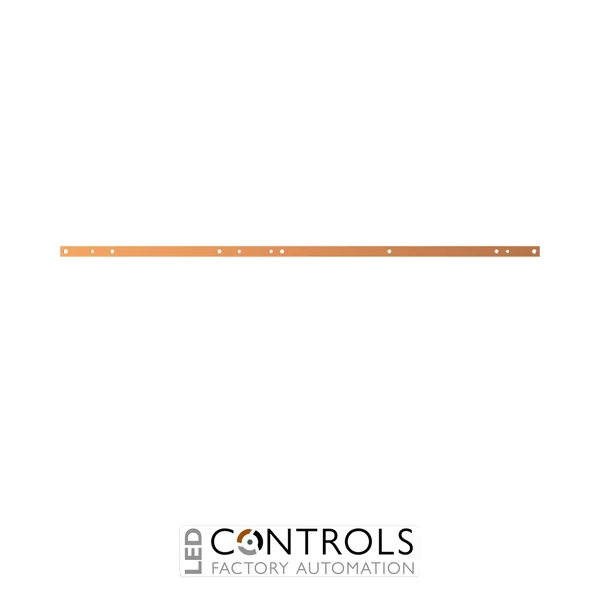

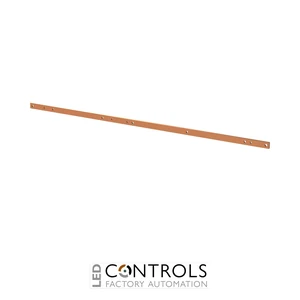

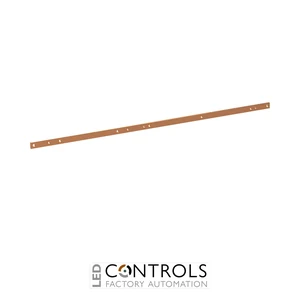

ABB ZXM1108 is a 630 A 30 x 10 mm copper busbar for 5-panel-width high-current power distribution within compatible ABB low-voltage distribution cabinets.
Why Choose the ABB ZXM1108 630A 30x10mm Busbar 5PW?
The ABB ZXM1108 is a robust 630 A copper busbar designed for high-current power distribution within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041580R9999, it forms part of ABB’s sub-distribution busbar system and is supplied mounted for integration into compatible cabinet assemblies.
Manufactured from copper with a substantial 30 × 10 mm cross-section, the ZXM1108 provides dependable current carrying for demanding electrical distribution applications. This rigid A2 copper rail is designed for cabinet row mounting on the right and left, supporting continuous busbar arrangements across compatible modules and cabinet sections.
With a maximum rated current of 630 A and a mounted cabinet length of approximately 1350 mm, the ZXM1108 is designed for a 5-panel-width (5PW) configuration. Its flat, non-flexible construction makes it well suited to professional switchboard, panel-building and sub-distribution installations requiring reliable high-current distribution.
Key Advantages
High-current 630 A copper busbar for professional power distribution.
Substantial 30 × 10 mm copper conductor section for efficient current carrying.
Designed for 5-panel-width (5PW) cabinet configurations.
Suitable for continuous busbar arrangements within compatible ABB distribution systems.
Rigid copper construction provides a mechanically stable electrical distribution path.
Mounted format simplifies integration into compatible ABB distribution cabinets.
Key Features
ABB ZXM1108 copper busbar.
630 A maximum rated current.
30 × 10 mm copper rail.
Approximately 1350 mm mounted cabinet length.
5-panel-width (5PW) configuration.
A2 copper rail for cabinet row mounting right and left.
Flat, rigid and non-flexible busbar construction.
Supplied mounted for installation within compatible ABB distribution cabinets.
Reliable High-Current Power Distribution
Copper busbars provide an efficient, low-resistance method of distributing substantial electrical currents throughout switchboards and distribution assemblies. Their rigid construction and large conductor cross-section make them particularly suitable for installations where dependable current carrying, mechanical stability and efficient use of cabinet space are essential.
The ABB ZXM1108 is designed for integration into compatible ABB cabinet distribution systems and uses an A2 copper rail arrangement for cabinet row mounting. Its 630 A maximum current rating, 30 × 10 mm copper section and 5PW format make it a practical solution for demanding commercial and industrial low-voltage distribution installations.
Typical Applications
Low-voltage electrical distribution cabinets.
ABB sub-distribution systems.
Industrial and commercial switchboards.
High-current cabinet power distribution.
Panel building and electrical distribution assemblies.
Continuous busbar arrangements across compatible cabinet modules.
Technical Specifications
Tick the specs you need, then view products that match.
Rail / Busbar Profile
30 × 10 mm
Device Type
Busbar
Product Series
ABB S&J system
ABB order code
2CPX041580R9999
Product group
DESUJ Sub Distribution
Product type
Copper busbar / copper rail
Busbar type
A2
Rated current
630 A maximum
Busbar dimensions
30 × 10 mm
Mounted cabinet length
approx. 1350 mm
Panel width
5PW
Construction
Flat rigid busbar
Flexible
No
Material
Copper
Mounting
Cabinet row mounting right and left
Installation
Mounted within distribution cabinet
EAN
4011617415800
Frequently Asked Questions
What is the ABB ZXM1108 used for?
The ZXM1108 is a copper busbar used for distributing high electrical currents within compatible ABB low-voltage distribution cabinets and sub-distribution systems.
What is the rated current of the ABB ZXM1108?
The ABB ZXM1108 has a maximum rated current of 630 A.
What size is the ZXM1108 busbar?
The ZXM1108 has a 30 × 10 mm copper cross-section and is designed for a mounted cabinet length of approximately 1350 mm.
What panel width is the ZXM1108 designed for?
The ZXM1108 is designed for a 5-panel-width (5PW) configuration within compatible ABB distribution cabinet systems.
What is the ABB order code for the ZXM1108?
The ABB order code for the ZXM1108 copper busbar is 2CPX041580R9999.
