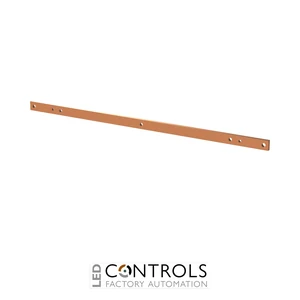

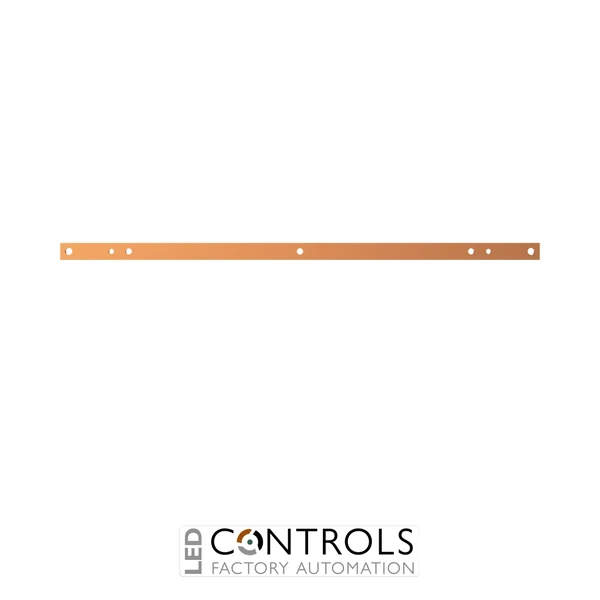

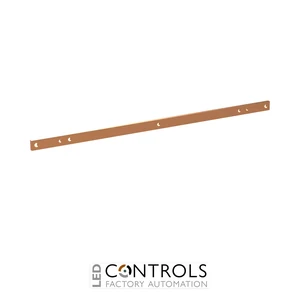

ABB ZXM1106 is a 3PW 30 × 10 mm copper busbar, order code 2CPX041578R9999, with an installed overall length of 850 mm and maximum rated current of 630 A for compatible CombiLine low-voltage distribution assemblies.
Why Choose the ABB ZXM1106 630A 30x10mm Busbar 3PW?
The ABB ZXM1106, order code 2CPX041578R9999, is a high-capacity 30 × 10 mm copper busbar designed for current distribution within compatible ABB low-voltage distribution cabinets. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a robust conductor solution for professional switchboard and sub-distribution assemblies.
The ZXM1106 is supplied mounted and installed in the cabinet and is configured for a 3PW field width. It is an A2 copper rail intended for cabinet row mounting to the right and left, supporting continuous busbar arrangements across compatible modular distribution sections.
With a substantial copper cross-section of 30 × 10 mm, a maximum rated current of 630 A and an installed overall length of 850 mm, the ZXM1106 combines high current-carrying capability with a rigid flat-busbar format. Its factory-mounted configuration supports efficient integration into professional ABB CombiLine distribution cabinets.
Key Advantages
High-capacity 30 × 10 mm copper busbar for low-voltage distribution systems.
630 A maximum rated current for demanding current-distribution applications.
3PW field-width configuration for compatible ABB cabinet assemblies.
850 mm installed overall length for three-field-wide cabinet arrangements.
Supplied mounted and installed in the cabinet for straightforward system integration.
A2 copper rail arrangement supports compatible cabinet row mounting to the right and left.
Key Features
ABB ZXM1106 copper busbar.
ABB order code 2CPX041578R9999.
30 × 10 mm copper conductor dimensions.
630 A maximum rated current.
3PW field width.
850 mm installed overall length.
Rigid, flat and non-flexible busbar construction.
Factory-mounted configuration for compatible ABB CombiLine cabinets.
Reliable High-Current Distribution for ABB Cabinets
Copper busbars provide a low-resistance and mechanically robust method of distributing electrical current throughout low-voltage switchboards and distribution cabinets. The ABB ZXM1106 uses a substantial 30 × 10 mm copper cross-section to provide current capacity up to 630 A while integrating efficiently into compatible modular ABB CombiLine assemblies.
The A2 copper rail arrangement is designed for cabinet row mounting to the right and left and enables compatible module widths to be combined with continuous busbars. The ZXM1106 therefore provides a system-matched solution for professional three-field distribution assemblies where reliable high-current capacity, consistent conductor dimensions and efficient ABB cabinet integration are required.
Typical Applications
Low-voltage electrical distribution cabinets.
ABB CombiLine distribution assemblies.
Sub-distribution boards and switchboards.
Cabinet row-mounting systems.
Industrial electrical distribution cabinets.
630 A copper busbar distribution arrangements.
Technical Specifications
Tick the specs you need, then view products that match.
Rail / Busbar Profile
30 × 10 mm
Device Type
Busbar
Product Series
ABB CombiLine
Series
CombiLine
ABB order code
2CPX041578R9999
Product group
DESUJ Sub Distribution
Product type
Copper busbar / A2 copper rail
Busbar dimensions
30 × 10 mm
Rated current
630 A maximum
Field width
3PW
Installed overall length
850 mm
A2 rail width
840 mm
Busbar height
30 mm
Busbar thickness
10 mm
Material
Copper
Construction
Flat rigid busbar
Surface finish
Untreated
Flexible
No
Installation
Mounted and installed in cabinet
Mounting arrangement
Cabinet row mounting right and left
Package quantity
1
EAN
4011617415787
Frequently Asked Questions
What is the ABB ZXM1106 used for?
The ABB ZXM1106 is a copper busbar designed for high-current electrical distribution within compatible ABB CombiLine low-voltage cabinet assemblies.
What size is the ABB ZXM1106 busbar?
The ZXM1106 uses a 30 × 10 mm copper busbar and has an installed overall length of 850 mm.
What is the rated current of the ABB ZXM1106?
The ABB ZXM1106 has a maximum rated current of 630 A.
What field width is the ABB ZXM1106 designed for?
The ZXM1106 is designed for a 3PW field width within compatible ABB CombiLine cabinet assemblies.
What is the ABB order code for the ZXM1106?
The ABB order code for the ZXM1106 30 × 10 mm copper busbar is 2CPX041578R9999.
ABB Components for Professional Distribution Systems
ABB CombiLine busbar components such as the ZXM1106 provide robust copper current-distribution infrastructure for building organised, dependable and system-compatible low-voltage electrical distribution assemblies.
