Why Choose the ABB ZXM1107 630A 30x10mm Busbar?

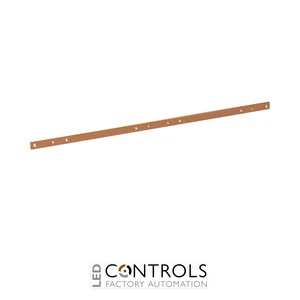

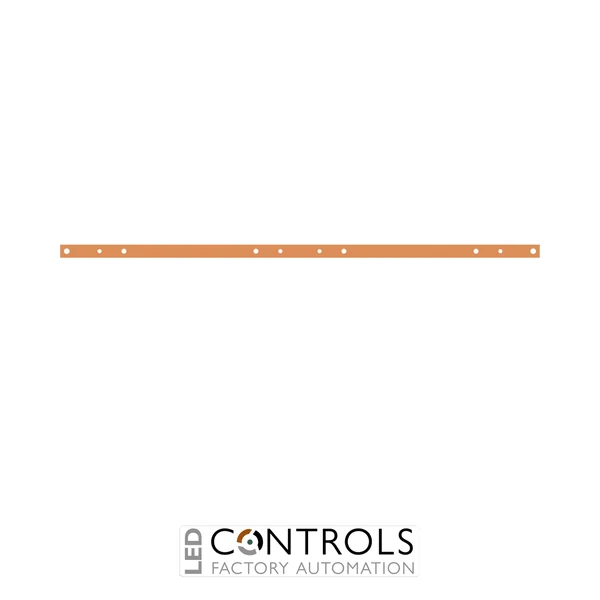

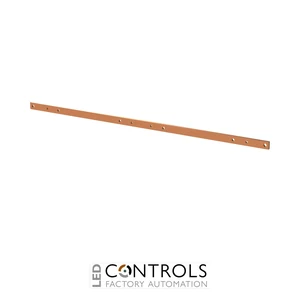

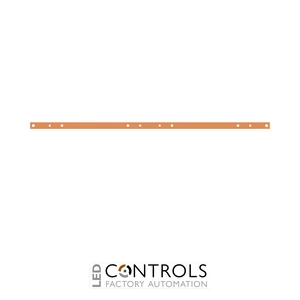

The ABB ZXM1107 is a robust 630 A copper busbar designed for high-current power distribution within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041579R9999, it forms part of the ABB CombiLine sub-distribution system and is supplied as a mounted copper rail for integration into cabinet assemblies.
Manufactured from copper with a substantial 30 × 10 mm cross-section, the ZXM1107 provides dependable current carrying for demanding electrical distribution applications. This rigid A2 busbar is designed for cabinet row mounting and supports connections between compatible cabinet sections, providing an efficient and mechanically stable distribution path.
With a maximum rated current of 630 A and an overall length of 1100 mm, the ZXM1107 is designed for a 4-panel-width (4PW) configuration. Its flat, non-flexible construction makes it well suited to professional switchboard, panel-building and sub-distribution installations requiring reliable high-current distribution.
Key Advantages
- High-current 630 A copper busbar for professional power distribution.
- Substantial 30 × 10 mm copper conductor section for efficient current carrying.
- Designed for 4-panel-width (4PW) cabinet configurations.
- Compatible with ABB CombiLine sub-distribution systems.
- Rigid, flat construction provides a mechanically stable electrical distribution path.
- Mounted format simplifies integration into compatible ABB distribution cabinets.
Key Features
- ABB ZXM1107 copper busbar.
- 630 A maximum rated current.
- 30 × 10 mm copper rail.
- 1100 mm overall length.
- 4-panel-width (4PW) configuration.
- A2 copper rail for cabinet-to-cabinet distribution arrangements.
- Flat, rigid and non-flexible busbar construction.
- Supplied mounted for installation within compatible ABB distribution cabinets.
Reliable High-Current Power Distribution
Copper busbars provide an efficient, low-resistance method of distributing substantial electrical currents throughout switchboards and distribution assemblies. Their rigid construction and large conductor cross-section make them particularly suitable for installations where dependable current carrying, mechanical stability and efficient use of cabinet space are essential.
The ABB ZXM1107 is designed for integration into compatible ABB cabinet distribution systems and uses an A2 copper rail arrangement suitable for cabinet-to-cabinet connections. Its 630 A maximum current rating and 30 × 10 mm copper section make it a practical solution for demanding commercial and industrial low-voltage distribution installations.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB CombiLine sub-distribution systems.
- Industrial and commercial switchboards.
- High-current cabinet power distribution.
- Panel building and electrical distribution assemblies.
- Cabinet-to-cabinet busbar distribution arrangements.
