Why Choose the ABB E290-32-11/115 Latching Relay?

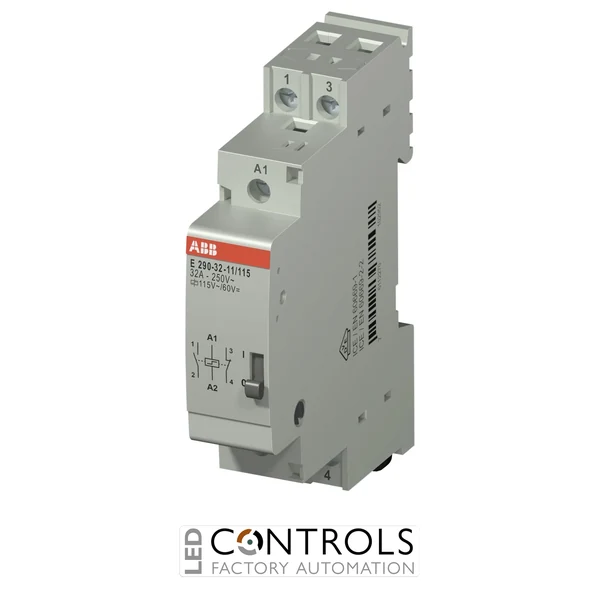

The ABB E290-32-11/115 is a high-current electromechanical latching relay designed for energy-efficient impulse switching of lighting and other compatible electrical loads. As part of the ABB E290 latching relay series, it combines a 32 A rated current with one normally open and one normally closed contact and a 115 V AC / 60 V DC control coil.
The E290 uses an impulse-operated mechanical latching mechanism. Each control impulse briefly energises the coil and changes the contact state, after which the contacts remain mechanically latched without continuous coil energisation until another impulse is received. A front operating lever also enables manual operation and provides a visible indication of the contact state.
With a 32 A rated current, 250 V AC rated voltage, 115 V AC / 60 V DC control voltage and 1NO+1NC contact configuration, the E290-32-11/115 provides complementary high-current switching functions for residential, commercial and industrial installations. Its compact 18 mm DIN rail format enables efficient use of space in modular distribution boards and control panels.
Key Advantages
- High 32 A rated current for compatible electrical loads.
- Energy-efficient electromechanical latching operation controlled by brief electrical impulses.
- 1NO+1NC contact configuration provides complementary normally open and normally closed switching.
- 115 V AC / 60 V DC control coil supports compatible AC and DC control circuits.
- Mechanical latching retains the contact state without continuous coil energisation.
- Front operating lever enables manual switching and contact-state indication.
- Compact 18 mm DIN rail format conserves distribution-board space.
Key Features
- ABB E290 electromechanical latching relay series.
- 32 A rated current.
- 1NO+1NC main contact configuration.
- 250 V AC rated voltage.
- 115 V AC / 60 V DC control voltage.
- 50 Hz rated frequency.
- 1.2 W power loss.
- 4 kV rated impulse withstand voltage.
- Impulse-operated mechanical latching mechanism.
- Manual operating lever with contact-state indication.
- DIN rail mounting with an 18 mm module width.
Energy-Efficient High-Current Impulse Switching
Latching relays such as the ABB E290-32-11/115 change their contact state each time an electrical impulse is applied to the control coil. The internal mechanical mechanism then holds the contacts securely in their new position without continuous coil energisation until another control impulse changes the state.
This switching principle is particularly useful for lighting and other compatible circuits requiring control from multiple normally open push-buttons. The E290-32-11/115 combines one normally open and one normally closed contact, a high 32 A rating and 115 V AC / 60 V DC control capability, providing flexible impulse switching for residential, commercial and industrial electrical installations.
Typical Applications
- Multi-point lighting control systems.
- Higher-current lighting circuits.
- Staircase and corridor lighting control.
- Commercial and public building electrical systems.
- Factory and industrial lighting installations.
- DIN rail distribution boards and control panels.
